Hardware Diagnostic Tester Tools Store provide diagnostic scanner,diagnostic tools,hardware scanner Excellent Clearance High Quality G-M Opel MDI Multiple Diagnostic Interface with Wifi Card OBD2 MDI Scanner Global Diagnostic Hardware + Software. Get Discount Now! Only US $178.76/piece at this time. Hurry buy Now before back to normal price! Normal price US $218.00 or you can Check price now. Dont waste your time. Buy Now only in OBD2 Store Trusted Seller Store!

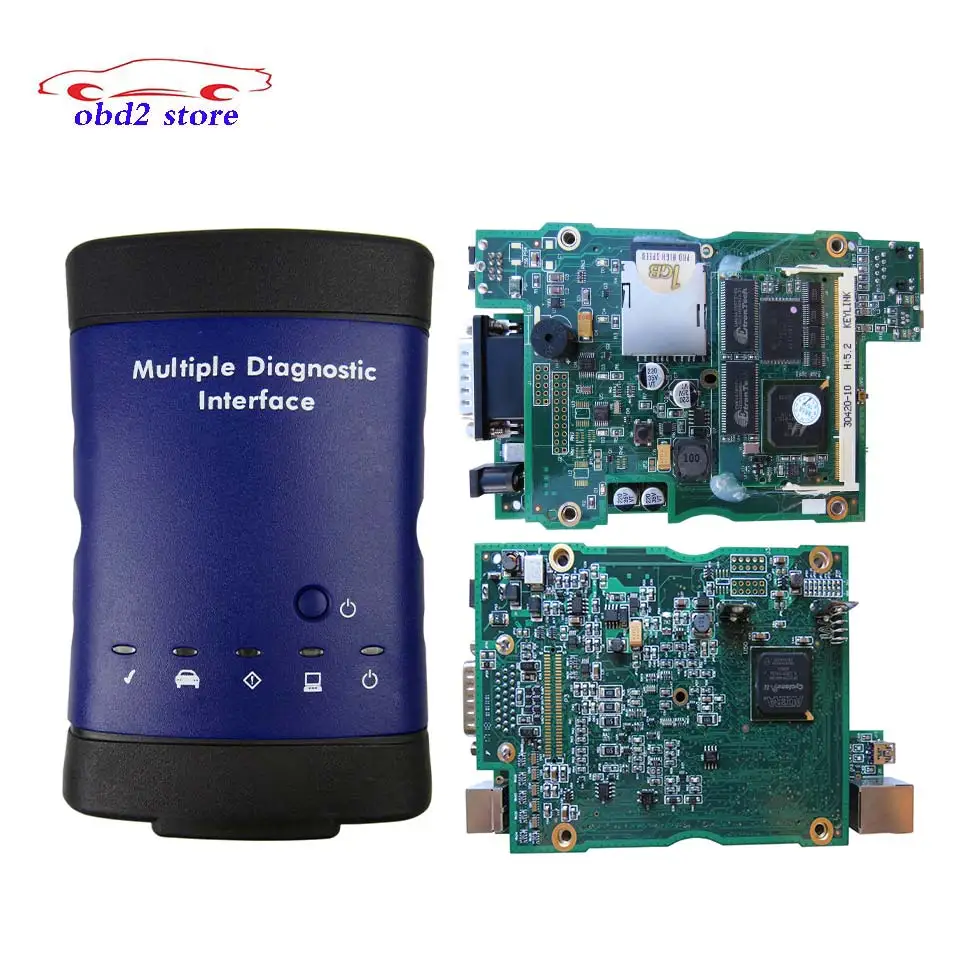

G-M Opel MDI Multiple Diagnostic Interface with Wifi Card OBD2 MDI Scanner Global Diagnostic Hardware & Software
G-M MDI obd2 scanner Features:
1.With opel Global tis global diagnostic system;
2.Support offline lease function;
3.Support Opel offline programming function;
4.With GDS2 diagnostic system;
5.Tech2win diagnostic software support adding latest software;
6.support programming online;
7.support cable communication;
8.support wireless communication;
9.support original factory latest software;
10.With European C-hevrolet Global tis, Supports European C-hevrolet offline programming;
11.All Chip are new and original.
G-eneral M-otors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI
MDI and GDS Background:
MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SG-M vehicles
Required for diagnostics on new SG-M Global A Electrical Architecture Vehicles
Used with TIS2Web, G-M Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic
G-M Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, G-M LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Pass through progrmming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnostic System (GDS) application
Includes Flight Recorder Mode
New Diagnostic Application Software required for Global A Vehicles
Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.
mdi Future of the Tech 2
The Tech 2 remains an essential tool through at least the 2010 model year. The G-M MDI will not support past models when its diagnostic capabilities are introduced. And, the Tech2 will continue to be needed to diagnose all vehicles fromprevious model years. Remote programming with the Tech 2 will continue to be supported for use on all 2007 and previous vehicles.Additional information will be supplied in future.
HOW WILL THE MDI BE USED?
The new G-M MDI can be used only in the Pass-Thru method. This means you can use it as your programming tool, while your Tech 2 CANDY remains available for diagnostics and other duties.
What protocols does the G-M MDI support?
For immediate use — At present, vehicles have two buses on the 16 pin connector (high speed and low speed G-MLAN). The G-M MDI communicates using all of the existing G-M protocols, the same as the Tech 2:
1.UART
2.Class 2
3.KWP2000
4.G-M LAN (CAN)
Package List:
1pc x GM MDI interface
1pc x OBD cable
1pc x USB cable
Notice:Win764 system,Please use the 08 factory computer, example:T410.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Excellent Clearance High Quality G-M Opel MDI Multiple Diagnostic Interface with Wifi Card OBD2 MDI Scanner Global Diagnostic Hardware + Software
