Hot Deals Newly Memoscan U581 OBD2 Scanner Live Data U581 CAN BUS Car Code Reader Automotive OBDII Professional Diagnostic Tool Free Ship

Hot Deals Newly Memoscan U581 OBD2 Scanner Live Data U581 CAN BUS Car Code Reader Automotive OBDII Professional Diagnostic Tool Free Ship tester tools Rating: 3.3 out of 5

Hardware Diagnostic Tester Tools Store provide hardware scanner,hardware tester,tester tools,diagnostic scanner Hot Deals Newly Memoscan U581 OBD2 Scanner Live Data U581 CAN BUS Car Code Reader Automotive OBDII Professional Diagnostic Tool Free Ship. Price at this time US $32.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

The only issue that the majority of people see in this item is that it has an extremely high rate as compared to other items. Individuals say that it is just couple of as well as very expensive people could afford this product. Well they are partially real concerning the rate of the goods but exactly what they do not recognize is that this Promo Hot Deals Newly Memoscan U581 OBD2 Scanner Live Data U581 CAN BUS Car Code Reader Automotive OBDII Professional Diagnostic Tool Free Ship product is made with the finest materials as well as with the most effective high quality this is why it has a higher price compared with others.

Description:

LCD Display , 128*64 pixel display with contrast adjustment, Backlit
Enter key selects displayed
Exit key go back to the previous screens
Up/down arrows-moves the selection pointer and scrolls up or down.
LEFT/RIGHT arrows-Select responses and moves cursor.
OBDII connector cable, connect car and the scan tool
This auto scanner (OBD II car reader) easily connects to the diagnostic socket and will quickly find your trouble issues by reading the specific diagnostic trouble codes (DTC) and shows their description as well. Moreover, this tool can display live data from your cars computer, such as current RPM, engine coolant temperature, vehicle speed, oxygen sensor data, and much more.
Newly launched model with wider vehicle coverage, as it supports the CAN Protocol.

This reader works on the following protocols:
SAE J1850 - PWM
SAE J1850 - VPW
ISO 9141-2
ISO 14230-4 - KWP 2000
ISO 15765-4 / SAE J2480 - Controller Area Network (CAN)

Systems the U581 Supports:

Misfire, Fuel System, Comprehensive components (ccm), EGR System, Oxygen sensor, Catalyst, Evaporative, O2 Sensor heater, Secondary air, Heated Catalyst, A/C System and many more.

Please Note:The latest U581 doesnt include nylon bag and battery!

Product Specifications

Display-Backlit LCD,128*64 pixel display.
Operating Temperature- 0 to 50
External Power: 10.0 to 15.5 vols provided via vehicle battery
Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)

Turns off check engine light
Trouble codes display on the LCD, neednt the code book.Switch between Metric and English Units!
Scanning live data
Fuel SYS1 - Fuel System Status
Fuel SYS2 - Fuel System Status
Coolant temp - Coolant Temperature
ST FTRM1 - Short Term Fuel Trim
LT FTRM1 - Long Term Fuel Trim
ST FTRM2 - Short Term Fuel Trim
LT FTRM2 - Long Term Fuel Trim
Engine RPM
Veh Speed - Vehicle Speed
IAT - Intake Air Temperature
Abslt TPS(%) - Absolute Throttle Position
Second Air
O2S12 - Oxygen sensor value
O2S22 - Oxygen sensor value

Reading Freeze Frame Data

Testing I/M Reading Status

Reads vehicle information including VIN# (if your vehicle is able to provide that)
Rescans Data
Easy to use with one plug-in.
Highly reliable and accurate
Easy-to-read crystal-clear LCD display
Stand-alone unit with no need for an additional laptop computer to operate
Performs continuous DTC scan
Safely communicates with the on-board computer

PACKAGE CONTENT - What you will get:

U581 Professional CAN OBD II Auto Scanner Tool
OBD II Connector Cable
Cable to allow connecting scanner to a USB port
Instruction Manual
For more details,please download the below link:

U581 User Manual

Does My Car Have OBD-II?
All cars and light trucks built and sold in the United States after January 1, 1996 were required to be OBD II equipped. In general, this means all 1996 model year cars and light trucks are compliant, even if built in late 1995.

Two factors will show if your vehicle is definitely OBD II equipped:
1) There will be an OBD II connector located under or around the dashboard, and
2) There will be a note on a sticker or nameplate under the hood: "OBD II compliant".

Where is the connector located?
The connector must be located within three feet of the driver and must not require any tools to be revealed. Look under the dash and behind ashtrays.

The Three Flavors of OBD II
While the parameters, or readings, required by OBD II regulations are uniform, the auto manufacturers had some latitude in the communications protocol they used to transmit those readings to scanners. Naturally, each felt they had the one true way, so we have three different OBD II communications protocols in use.

What Communications Protocol does my vehicle use?
As a rule of thumb, GM cars and light trucks use SAE J1850 VPW (Variable Pulse Width Modulation). Chrysler products and all European and most Asian imports use ISO 9141 circuitry. Fords use SAE J1850 PWM (Pulse Width Modulation) communication patterns.
There are some variations among captive imports such as the Cadillac Catera, a German Opel derivative, which uses the European ISO 9141 protocol.

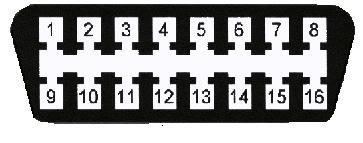

On 1996 and later vehicles, you can tell which protocol is used by examining the OBD II connector:

J1850 VPW--The connector should have metallic contacts in pins 2, 4, 5, and 16, but not 10.
ISO 9141-2--The connector should have metallic contacts in pins 4, 5, 7, 15, and 16.
J1850 PWM--The connector should have metallic contacts in pins 2, 4, 5, 10, and 16.

The following is a reduced list of tested vehicles:

For Acura, For Aston Martin, For Audi, For Bentley, For BMW, For Buick, For Cadillac,For Chevrolet,For Chrysler, For Daewoo,For Dodge,For Eagle,For Ferrari,For Fiat, For Ford,For GMC,For Honda,For Hummer,For Hyundai, For Infiniti,For Isuzu, For Jaguar,For Jeep,For Kia,For Land Rover,For Lexus,For Lincoln,For Maserati,For Mazda, For Mercedes,For Mercury,For Mini,For Mitsubishi,For Nissan,For Oldsmobile,For Opel,For Peugeot,For Pontiac,For Porsche,For Renault,For Saab,For Saturn,For Scion,For Smart,For Skoda,For Subaru,For Suzuki,For Toyota, For Volkswagen,For Volvo,

Package List: 1 x U581 OBDII/EOBD Scanner 1 x 16 pin OBDII connection cable 1 x USB Internet upgrade cable 1 x Instruction Manual 1 x Retail Box
