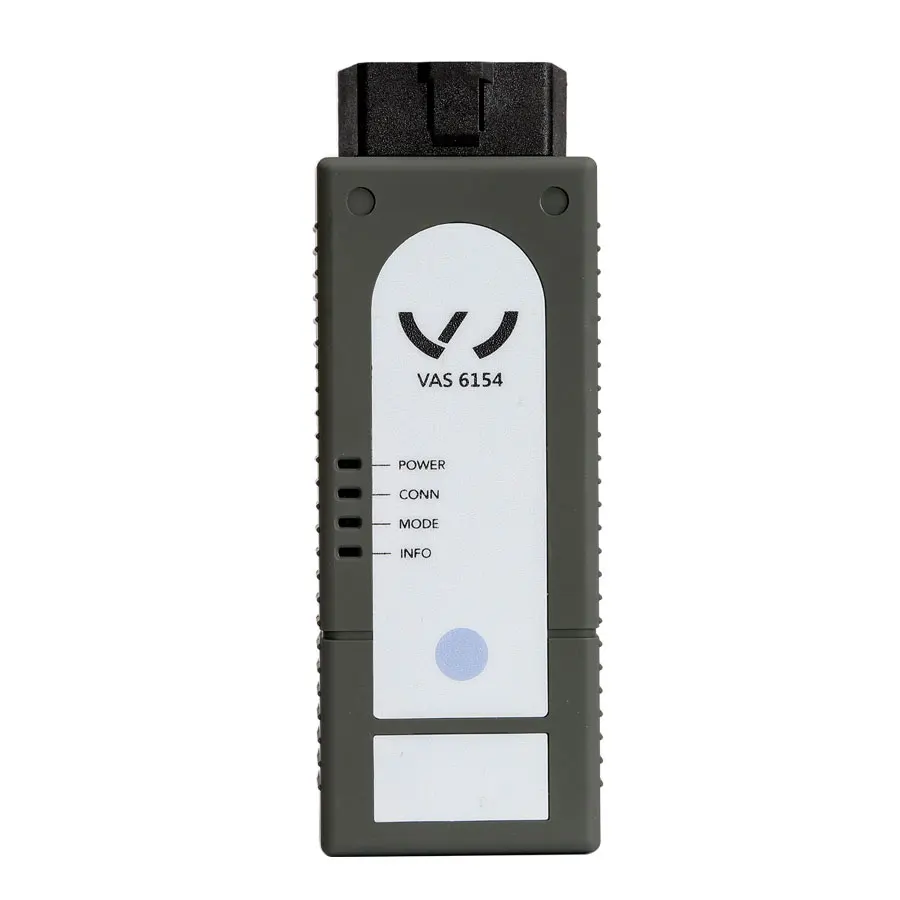

Hardware Diagnostic Tester Tools Store provide tester tools,hardware tester Cool Gift Vas 6154 Vas6154 Odis V4.23 for Vw Audi Skoda Wireless Diagnostic Interface with Free Keygen Support Win10. Price at this time US $99.99/piece. Check price now to get discount! Dont waste your time. Buy Now only in LOGASMART Autogas OBD2 Tools Store Trusted Seller Store!
Top 7 reasons to buy VAS6154 Diagnostic Tool for VW Audi Skoda:
1. Multi-language:English, Japanese, Portuguese, Denishn, Korea, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Denish, German, Swedish, Finnish, Slovenia, Czech, Russian, Greek, Chinese.
2. Latest version: ODIS V4.23.
3. Update via CD.
4. Support USB and WiFi Connection:
The diagnosis interface VAS 6154 with wireless network technology supersedes remote diagnosis head VAS 5054A and diagnosis interface VAS 5055.
It makes wireless transmission of data possible from the interface in the vehicle to the diagnosis unit.
If a wireless connection is not possible/permissible, the USB module is used, which guarantees a reliable wired data transmission to the diagnosis unit.
5. Support Vehicles: The VAS 6154 can be used with all VW Audi Skoda vehicles from 2000 onward including NEW &: FUTURE MODLES under production.
6. This VAS 6154 Interface is the latest interface for the diagnostic and programming applications VAG ODIS-S (Service) and ODIS-E (Engineering), it replaces the VAS 5054A.Available for Off-board Diagnostic Information Engineering from version 6.2 onward and Off-board Diagnostic Information Service from version 3.0.3 onward.
7. With OKI Chip, support UDS protocol.
ODIS V4.23 Computer Restrictions:
1.Windows 10 only supports the new diagnostic interface VAS 6154 (known as the WLAN remote head).
2.Users of the older models VAS 5054, VAS 5054A and VAS 5055 can continue to use the Windows 7 i.do client on existing systems until 2019 or acquire the Windows 7 i.do. client from IT Client Support for replacement devices.
3.The new diagnostic interface can be used with both operating systems. Please place any necessary orders with Workshop Equipment in good time.
Tips on using VAS6154:
1. When install the software, please choose 5054A.
VAS6154 Infrastructure mode:
In infrastructure mode, several network-capable devices can be connected together (network subscribers).
For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.
VAS6154 Point-to-point connection:
With point-to-point connection via a wireless network, VAS 6154 creates a radio network. VAS 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface VAS 6154.
VAS 6154 is configured using the web-based user interface.
VAS6154 Design and features:
There are two equipment versions:
One version includes a wireless network and USB module One version has no wireless network module (the wireless network module can be retrofitted at any time provided national regulations permit).
Radio registration verified for the following countries:
A, AUS, B, BIH, BR, CDN, CH, CY, CZ, D, DK, E, EST, F, FIN, GB, GR, H, HK, I, IL, IND, IRL, IS, J, L, LT, LV, M, MEX,N, NL, NZ, P, PL, RA, RC, ROK, RUS,S, SGP, SK, TR, UA, UAE, USA, ZA
Functions in version 4.2:
The key features newly added or revised in release 4.2 are described briefly in this section and the additional CCB_DS IDs implemented are cited.
CCB 1127
The update check when starting ODIS Service should be "silent".
CCB 1140
Functional tester send present request only once
CCB 1589
support of new VW cross section load books
CCB2004
Display of a support guideline
CCB2015
Farsi (RTL) language support
CCB1692
Display connection quality VAS6154
CCB1968
trace records for DoIP
CCB2038
Read and display DTC snapshots
Defect resolution in version 4.2
The defects resolved in release 4.2 are described briefly in this section.
19502 In the case of end-of-life vehicles (European market), the diagnostic entry remains at "Waiting for synchronization" hang.
16858 Update OS 2.2.4: VAS 6558-6558A ODIS is available twice in the programs and functions after the update.
18569 Flash aborted while flashing the climate control unit via DoIP.
18648 OS 3.1 TPI Reference to diagnostics object (Extend inspection plan) Partially not functional.
18751 Measurement technology is not automatically removed or uninstalled with ODIS-Service Deinstallation.
18891 Softing feature on Windows 10 computer.
19131 Control unit 0025 Immobilizer is not automatically identified when boarding the A8_2003.
19717 Network status is not detected correctly on OS 4.0 and VAS6154 USB.
19182 ODIS Service 4.0.0: The green arrow is missing on the Finnish / Next button.
19207 Read out identification data, ident status is not displayed in the print log.
19227 Log files are filled with ArrayList messages.
19247 ODIS S: different tester present behavior between diagnosis and flashing.
19251 OS 4.1.0 Build 41_3_0_1 contains the wrong Diagnostic_Data_Hook.
19278 Entering a special character "_" or "-" (underscore, hyphen) is not possible during installation in the host name of VAS 6154.
19289 Evaluation of unauthorized event memory incorrect.
19296 Saved diagnostic session can not be loaded.
19298 Error when logging on to the CPN via the button Infomittel- because of certificate VW-CA-Proc-07.
19302 Information about the VCI at the top of the interface disappears when the language is switched.
19313 ODIS Service 4.1.3: The diagnostic protocol does not state that communication is via DoIP.
Defect resolution in version 4.2.
19318 OS 4.0.0 and 4.1.0: A not yet translated standard text is not displayed in the execution system when using a language as Created, it does not fallback mechanism.
19319 OS 4.0.0 and 4.1.0: A text module is not displayed in the execution system when using a language other than Created.
19325 OS 4.1.0: When using placeholders with TextIDs, text blocks or ANSI.
Text modules come back instead of these texts, a NULL. The placeholder (variable) is displayed correctly.
19350 Spelling errors in the setup.configurator: Special characters instead of special characters.
19370 OS 4.1.3 Malfunction of the status display of the network connection.
Supported vehicles with Version 4.2.
Approved AUDI vehicles.
All AUDI vehicles are supported.
Approved Volkswagen vehicles.
All Volkswagen vehicles are supported.
Approved Volkswagen Nutzfahrzeuge vehicles.
All Volkswagen Nutzfahrzeuge vehicles are supported.
Approved Seat vehicles.
All Seat vehicles are supported.
Approved Skoda vehicles.
All Skoda vehicles are supported.
Approved Bentley vehicles.
All Bentley vehicles are supported.
Approved Lamborghini vehicles.
The following Lamborghini vehicles are supported:.
Gallardo from MY09-MY14 (only immobilizer and Radio PIN Code) Aventador und Huracan.
Approved Bugatti vehicles.
Bugatti Veyron and Bugatti Chiron are supported.
Approved MAN vehicles.
MAN-TGE is supported.
VAS6154 ODIS 4.13 Software New Functions:
¨C Estimated remaining times are shown for ECU flash operations.
¨C Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests.
¨C The measured value display has been improved.
¨C Documents in GFF are displayed in separate windows.
¨C One message box will be shown at the beginning of the test drive mode.
¨C GFF hotfixes can be integrated during diagnostic sessions.
¨C Danger messages have been revised.
¨C Stopping of diagnostic sessions may be interrupted.
¨C Automatic deletion of autosave diagnostic protocols after successful transmission.
¨C Selection of PassThru diagnostic hardware has been improved.
¨C ODIS Service Software update has been stabilized.
VAS6154 Technical data:
Dimensions: Power supply: 8-18V via vehicle connector
Output: approx. 5W
Temperature range: Storage -20¡ãC to +85¡ãC, operation -20¡ãC to +40¡ãC
PC interface (wired): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)
Package Includes:
1pc x Diagnosis interface VAS 6154:
1pc x USB cable:
1pc x CD (with Newest ODIS software).
FAQ:
Q: Whether the VAS 6154 with OKI Chip, support UDS Protocols?
A: Yes, it with oki chip, support UDS Protocols.
