CR508 Diesel Common Rail Pressure Tester and Simulator For Bosch Delphi Denso Sensor Test Tool Diagnostic Tools High-Pressure CR508 For Delphi Free Shiping

Main Functions of Products:

1. Measuring for Bosch Common Rail Pressure Sensor;

2. Measuring for Denso Common Rail Pressure Sensor;

3. Measuring for Delphi Common Rail Pressure Sensor;

4. Stimulating for Bosch Common Rail Pressure Sensor;

5. Stimulating for Denso Common Rail Pressure Sensor;

6. Stimulating for Delphi Common Rail Pressure Sensor;

Product Parameters: Screen: 84x48 LCD display Input voltage: 8~32VOperating current: Typical value <50mAOperating temperature: 0-50CStorage temperature: -20C ~70CRelative humidity: 60%Product dimension: 127*72*36Host machine weight: <250gCommon rail pressure measurement scope: 0-200MPaStimulation scope of common rail pressure simulator: 0-200MPaRail pressure tool with SIMULATION FUNCTION!

One of most competitive rail pressure tester on price!

1. CR508 is the latest upgrade rail pressure tester, it can test kinds of common rail pressure sensors of diesel engine, include test for BOSCH,DENSO,DELPHI.

2. CR508 is a portable fuel-way pressure tester and simulator. Except test, CR508 also can be used for simulating fuel pressure that universal scanner can’t have. By simulation , users can stimulate conveniently for searching problems on fuel way.

	CR508	Universal Scanner	Other Rail Pressure tester	Mechanical Rail Pressure meter
Rail pressure test range	0-200MPa	0-200MPa	0-200MPa	0-70MPa
Test Accuracy	0.01MPa	0.1MPa	0.1MPa	1MPa
Display	LCD	LCD	LED number display	pointer
Test Way	From Sensor Directly	From Diagnostic Socket	From Sensor Directly	Pipe
Simulate	YES	NO	NO	NO
Simulate Range	0-200MPa	NO	NO	NO
Simulate Accuracy	0.01MPa	NO	NO	NO

3.CR508 Diesel Engine common rail pressure test can be operated simply with high accuracy avoiding the complicated operation compared with the previous use of mechanical pressure gauge pressure tube and problem caused by other factor entering a damaged fuel injector and the pipe damage , a series of negative effect caused by oil spills .

4. CR508 greatly improves the working efficiency.Most importantly according to the standard data to search for the engine starting difficulty and power caused by the lack of engine fault alarm The instrument is enclosed with standard operating rail pressure data and details of the fault that can quickly guide the repair staff to trouble shooting and repair detection of common rail. It truly become an indispensable diagnostic instrument

5. To judge whether the common rail pressure is normal based on the comparison between the testing results and standard data.Usually indicate the below problem about the engine if the common rail pressure is unnormal.

Engine is hard to start or could not be started.

Engine lacks of power.

Engine power is not stable or some high some low.

Engine climbing powerless.

6. CR508 supports all common rail pressure sensors, include the testing for Bosch, Denso and Delphi; measurement range includes 0MPa to 200Mpa. The accuracy is up to 0.01MPa. Adaptive measurement mode is adopted for CR508. User do not need to select, and the product can automatically recognize type of connected sensors for rapid measurement.

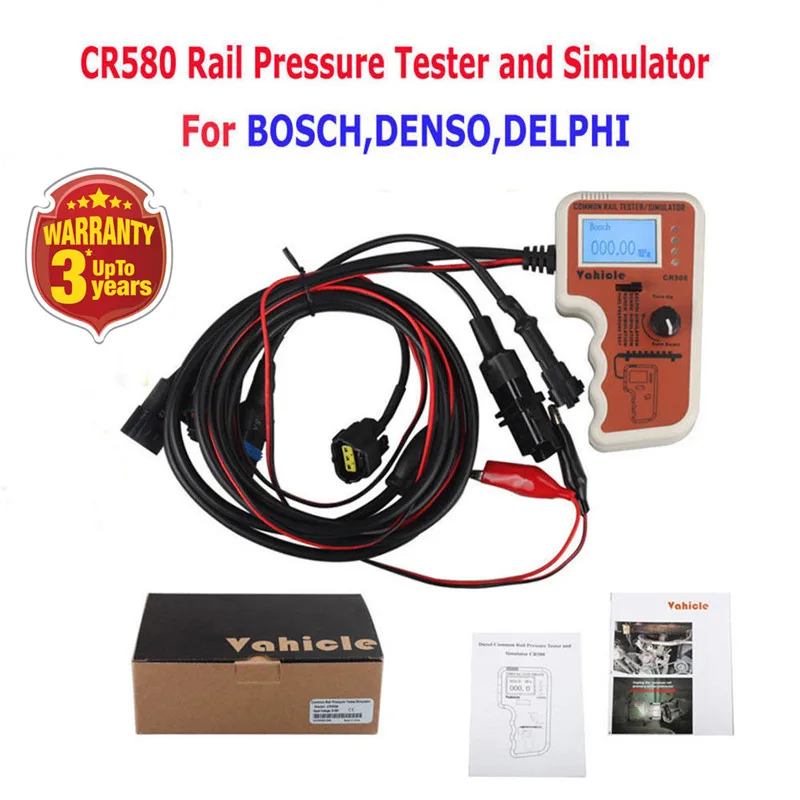

For detail cable for Bosch, for Delphi and for Denso

1) LCD screen ;

2) Measurement and simulation selector switch ;

3) LED lights ;

4) Common rail pressure leads ;

5) Common rail pressure regulator simulation ;

6) Power supply cord ;

7) for Denso Common Rail Pressure Fittings

8). for BOSCH Common Rail Pressure Fittings

9) for Delphi Common Rail Pressure Fittings

10) Main Unit

display screen for Bosch( new product accuracy for 0.01MPA

1. Measured sensor types include: for BOSH, for DENSO and for Delphi

2. Measurement result

3. Measurement unit

Description of Common Rail Pressure Joint

Each group of CR508 common rail pressure Joints are composed of two Joints, including one male joint and one
female joint, which are connected in parallel for use.

Customer help us to make the test for KIA that for BOSCH
