Hardware Diagnostic Tester Tools Store provide hardware scanner,diagnostic tools Fantastic Sale MST-9000+ MST 9000 Auto Sensor Signal Simulation Tool MST 9000+ ECU Repair Tools Fit Multi-brands Cars Made In Asia Europe USA. Get Discount Now! Only US $596.90/piece at this time. Hurry buy Now before back to normal price! Normal price US $635.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Our Brand: RCOBD
Our PCB：

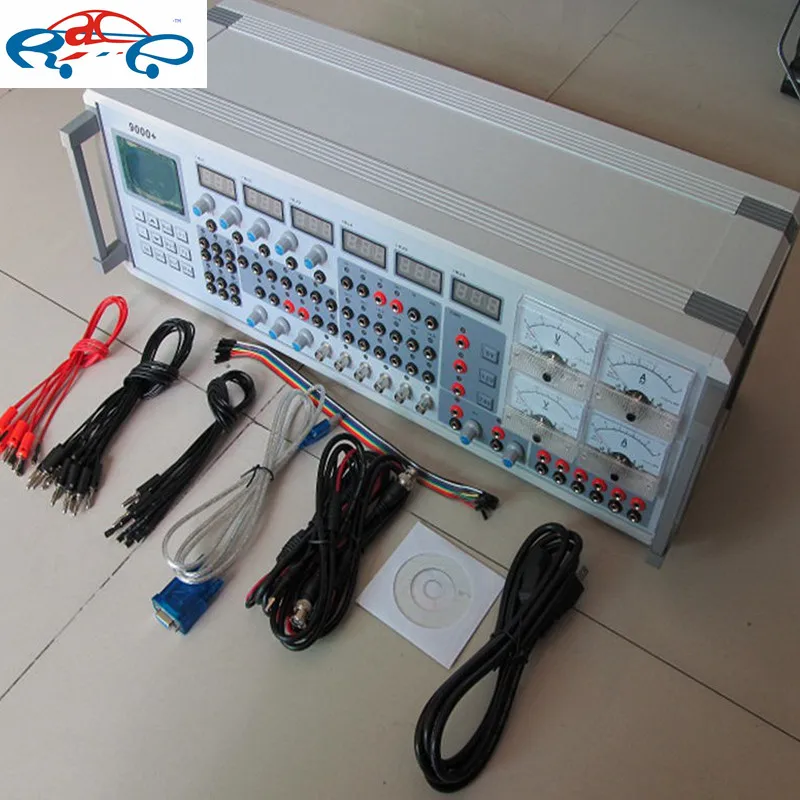

The real pictures of MST9000+ from different angles:
MST 9000 + Highlights:
1. Language: English
2. Software version: 2012 MST-9000+
3. Update: Via Email
4. Warranty: 1 year
5. Increase Simulate Knock Sensor Function, Output Port are KS2, KS2
6. Increase Reserved Port X1-X6 Stand-By, The Customer Can Set Simulation Singnals As Need
MST-9000+ Description:
This Automobile Sensor Signal Simulation Tool is an indispensive car ECU repair tool, with newly update and more stable function. After many years R&D and times of upgrades, now our sensor siginal simulation expert has been the most fix purchasing equipment with advance technology for many workshop and automobile training school.
Sensor Signal Simulation Tool MST 9000+ Detailed Application Range:
1. Automobile sensor dynamic diagnosis, engine, transmission, ABS, air-conditin, Immo etc. for ECU repairing, auto teaching aid model driver, auotmobiles R&D.
2. This Sensor Signal Simulation Tool fit multi-brands cars made in Asia, Europe, USA.
MST-9000+ Major Function:
1. Users can set the engine control system, independent of different types of crank signal output (for all models of computer-driven)
2. Automatic transmission input and output shaft signal simulation
3. Set the waveform data is written directly
4. Engine speed signal output
5. Speed signal output (Hall signal, magnetic signal)
6. Three, four-channel ABS wheel speed signal output
7. PC board working current test
8. EGR solenoid valve drive
9. Carbon can clear the solenoid valve drive
10. Tachometer drive
11. Blower Control Module Driver
12. Idle valve driver
13. Stepper motor drive (4, 6 lines)
14. Injector Driver
15. Ignition coil driver
16. Ignition module drive
17. Parking sensor (ultrasound) probe drive
18. Automatic Shift Valve Drive
19. Shift quality valve drive
20. hydraulic valve drive
21. Water temperature, intake air temperature, outdoor temperature, evaporation temperature sensor signal simulation box
22. Oxygen sensor signal simulation (manual)
23. Oxygen sensor signal simulation (auto signal)
24. Throttle signal simulation
25. Carbon can clear the solenoid valve simulation
26. EGR solenoid valve simulation
27. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation
28. Ignition coil simulation
29. Injector simulation
30. Idle stepper motor simulation (four-lane, six-lane)
31. A \ C relay simulation
32. Pump relay simulation
33. Radiator fan relay simulation
34. Audio signal outputs, power amplifier driver
35. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation
36. Fuel injection pulse width measurement
37. Central lock server simulation
38. Burglar resistance simulation
39. User Extension
MST-9000+ Special Feature:
1. All cars crank signal simulation experts
It can be set arbitrary waveform output, can produce all the models of todays engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform data, waveform memory card from the long-term preservation, waveform data for free online updates.
2. All cars sensor signal simulation experts
Speed signal, speed signal (Hall, magnetic, optical signals), ABS wheel speed signal, the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation
3. All cars Actuator experts
Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc. etc all cars actuator simulation experts:
Actuators simulation for Ignition coil, injectors, idle speed stepper motor, ultrasonic generators etc.
Strong domestic first-line five-channel editing functions crank signal
Five arbitrary wave signal analog output
MST 9000+ Output Signal:
magnetic signals, Hall signals, optical signals
1. Actuator: Drive current 3A, 1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment;
2. Sensor Signal Simulation: resistance 100Ω ~ 10000Ω voltage of 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V
3. The implementation of simulated driving: 69-channel simultaneous output
4. Stepper motor drive: current 1A, applicable to all vehicles with four, six, stepping motor driver;
5. Ammeter maximum test current: 5A
MST 9000+ Packing List:
1. Sensor signal simulation expert Gold Edition 1 set
2. Data line 2
3. Power line 1
4. CD 1
5. USB cable 1
Kindly Note: * If you come from Russia, Brazil, Ukraine, please choose EMS, Thanks.
* If your place belongs to remote place, please add more 33USD as Remote fee, thanks.
* If you come from Saudi Arabia, please offer the copy file of your ID to us, thanks.
Shipping Terms:
1. Items will be sent to all the countries over the world.
2. This package will be sent by China Air Mail Post, Hongkong Airmail Post,EMS,UPS DHL or ARAMEX .
3. Items will be checked carefully before sending out.
Shipping Time:
A. 1 business days for order processing after received the payment.
B. The shipping time is about 2 to 5 days via DHL/UPS,5-14 days via HK POST AIR and EMS to Worldwide.
C. Note: We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Choosing China Post Air mail (HongKong Post Air Mail),Please.
D. Note :We can provide the Tracking Number for you ,but Can not guarantee that the arrive time for the goods . the buyer will bear the consequences.Thank you for your understanding.
Return Policies:
1. This product is made by China, If you are not satisfied with the item for any reason, so you can return the goods to us, the item should be the same condition as it was delivered to you. .please contact us quickly, we can exchange one to you, but buyers is responsible for the returning shiping cost .
2. If you have any item proplem, just email us quickly, we will do our best to slove it in 24 hours, please don?t leave bad feedback before contacting us, it is not the best way to slove proplems. Thank you!If you want more items we can give you some discout,thank you!
Very Important Tips:
1. We have much experience on customs clearing, please tell us what is the best price for you for declared value of the package,so that you can avoice to pay high tax.
2. as far as we know , FRANCE and TURKEY have strict import policy.so if your package is going to those country,you must quite familiar with the policy and tell us what is the best.
3. if you are from Brazil,you must provide your CPF NUMBER(TAX NUMBER) to us.
4. if you can not get the package due to the policy in your country,we will not bear the lost . Hope you can understand.
Contact Us:
Our office hours are :
Am8:30- pm11:00
And if nobody answer you online in time sometimes,do not worry,leave us a message or write down your desires,we will contact you as soon as possible.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Fantastic Sale MST-9000+ MST 9000 Auto Sensor Signal Simulation Tool MST 9000+ ECU Repair Tools Fit Multi-brands Cars Made In Asia Europe USA
Hello, I'm getting the 11.06V Dc from the injector(InJ1) pin. and this is very strange for me. Can you please help me how to inject the Bosch ECU signal through the Engine simulator. Looking forward to it..Thanks in advance
