100% Original Xtool PS2 Heavy Duty Truck Professional Diagnostic Tool

PS2 Heavy Duty Diagnostic Scanner

1. 2 years Warranty2. Update by internet and Update website: www.xtooltech.com3. Free update for 2 years4.Language: English Only

5. Dealer code:XT0240

PS2 Test Trucks

for C-ummins, Isuzu, Mack, V-olvo, Man, S-ania,

M-ercedes-B-enz, Hino, Iveco and DAF

1)MAN - the program, a wire, how many 16 Pin

2) V-olvo - the program, wires 8pin,16pin,6+9 pin,14pin
3) Iveco - the program, wires 30pin,38pin,16pin
4) DAF - the program, wires 16 pin

test sensors, injectors cut off, pressure test, turn on and off sensors

and has trouble shooting and tech tips and reset max speed of v-olvo, man, cat

Softtware:

European:for VOLVO, for SCANIA, MAN, MERCEDES BENZ, MACK, DAF, IVECO, ERF, Astra, Bremach , for Renault
Asian :ISUZU,HINO,FUSO,HYUNDAI.KIA.UD
Usa:CAT,CUMMINS,DEROIT
Chinese:YUTONG,SHAANXI.SANY,KINGLONG,SINOTRUCK,JAC,FAW,DONGFENG,BEIBEN,WEICHAI

Diagram of PS2 mainframe appereance

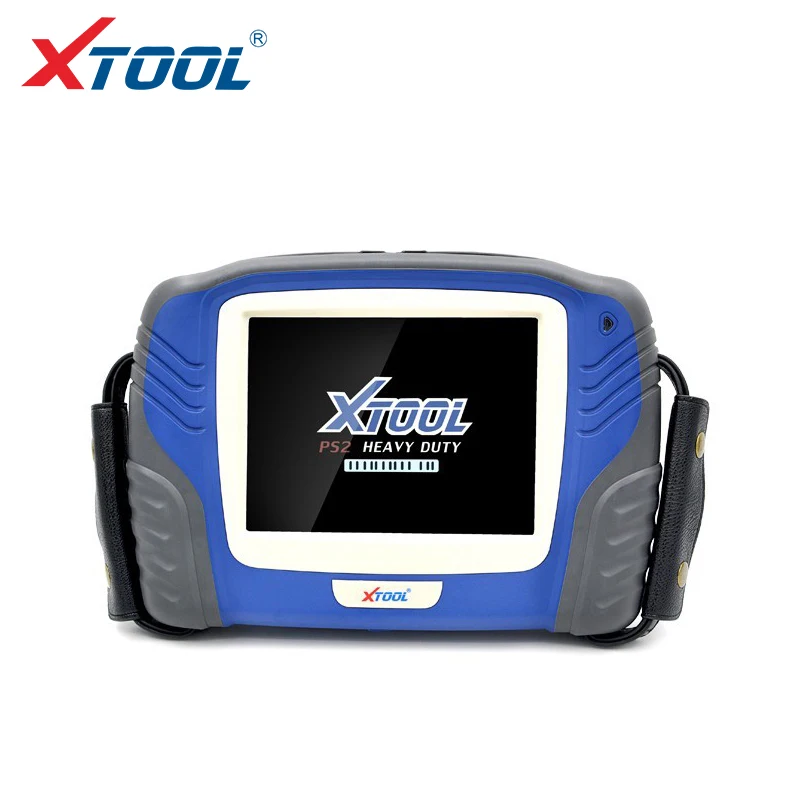

A. Front-View Figure

B. Back-view Figure

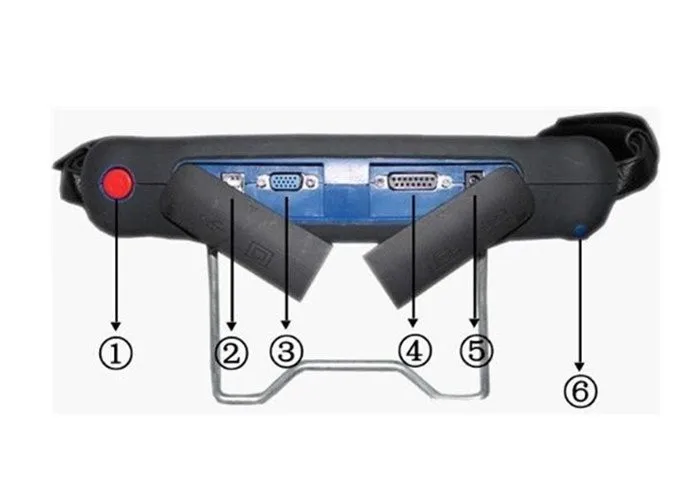

C. the upward-side connection of the mainframe:

1) Power switch: Uses for starting and closing of main engine
2) USB connection: Uses this connection to carry on the data synchronization with PC.
3) VGA connection: Uses this connection to link the external monitor (800X600 pixels)
4) Main test connection: Uses the testing line to carry on the vehicles diagnosis.
5) power connection: Uses for the exterior power supply
6) touching pen: Uses in clicking on the touching-screen.

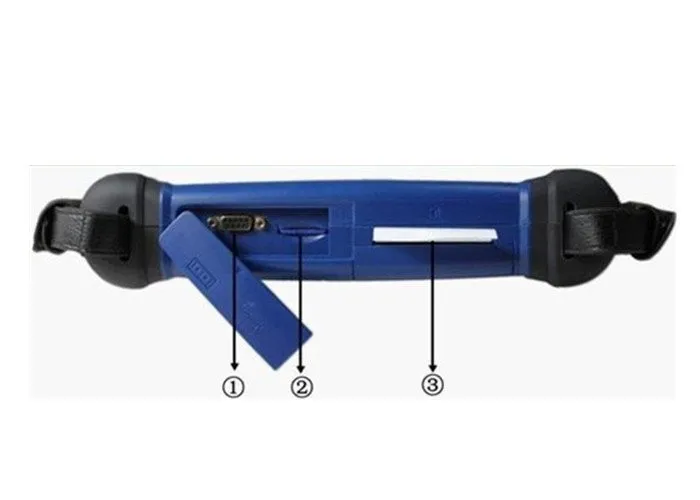

D. the lower-side connection of the mainframe:

1) serial port:Uses in the main body debugging.
2) SD card slot:uses for SD card
3) paper outlet:use for mini printer

Function of VCO diagnostic box

The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The testing line connects PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor could directly link with PS2 mainframe)
PS2 mainframe without main testing line also can do diagnosis as the bluetooth communication module has been installed inside the VCI diagnosis box. Please change the setting from “on-line diagnosis” to the “wireless diagnosis” on the menu if you are wondering to use it with wireless!

Tip: If you use the OBD testing connectors for direct connection, can only detect the standard diagnostic connector pin out on the connected system (pin 7 for ISO diagnosis, pins 2 and 10 for SAE diagnosis, 6 and 14 pins for the CAN diagnosis). This is usually the engine control system, some cases may find other systems. All diagnostic criteria did not take out the plug pins on the OBD system must use the test connection with the million a jumper box to the jumper connection test. In the use of million a jumper box to the jumper connection test, click on that connection as follows:

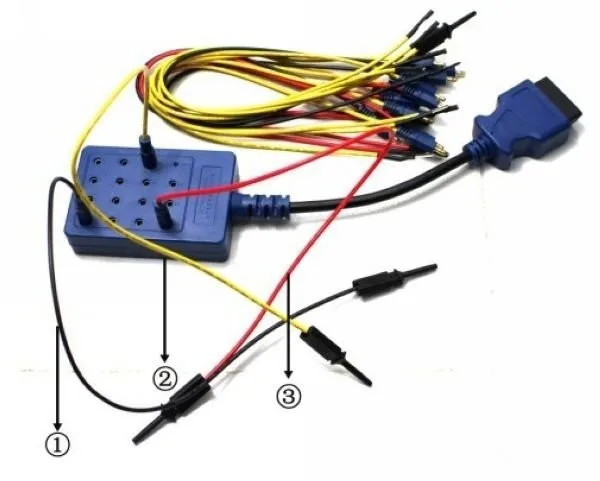

1.the multi-jumper box with cables

1.Ground
2.power lines
3.signal lines

2.note of the side hole on multi-jumper box , it is visible on the label place of the box back
