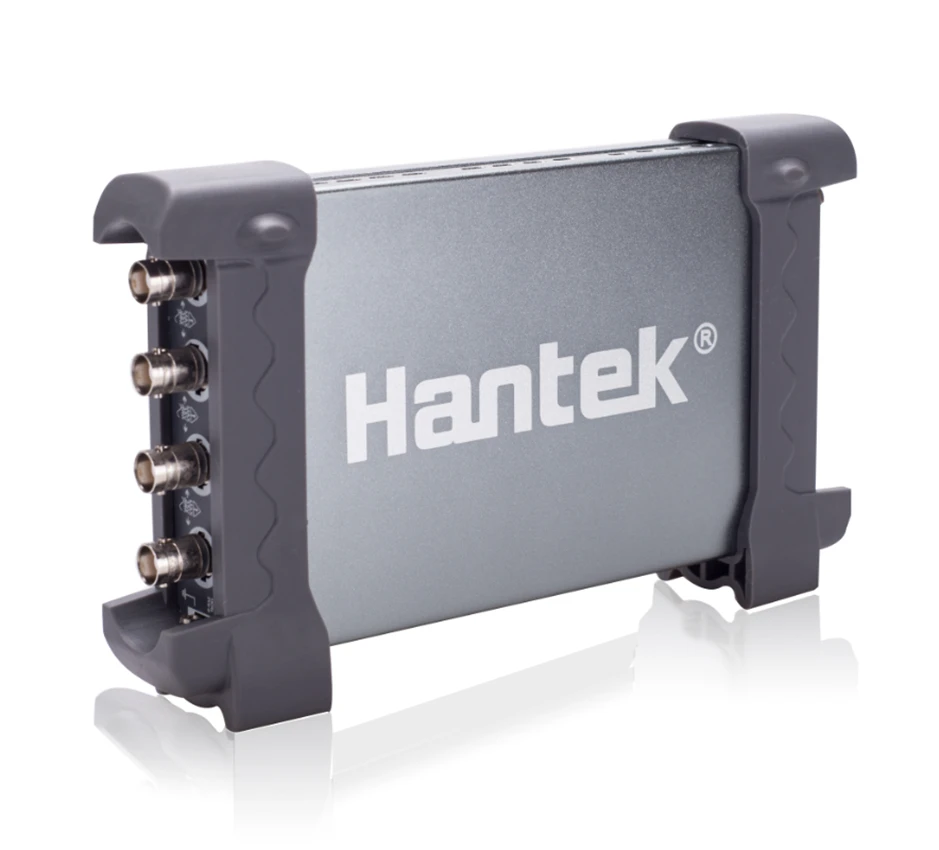

Hantek 6104BE Digital Oscilloscope Portable USB PC Based 100MHz 4 Channels 1Gsa/s Handheld Digital Osciloscopio Diagnostic Tool

Automotive Professional Diagnostic Tool

Feature:

Standard equipped of automotive measurement function;
First Diagnosis: Intake manifold vacuum &ignition,Petrol fumes adjusting valve vacuum &ignition,Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply;
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodisedaluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples
Specifications:
Brand Name: Hantek
Material: Aluminium Alloy + Plastic
Model: Hantek6104BE
Bandwidth: 100MHz
Oscilloscope Probe Model: PP-90 / PP-150 / PP-200 / PP-250 (Corresponding)
Item Size: Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in
Item Weight: Approx. 453g / 16.0oz
Package Size: Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in
Package Weight: Approx. 1310g / 46.2oz

Characteristic:

Model	Hantek6104BE
Bandwidth	100MHz
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time BasePrecision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div~10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	175mm * 105mm * 25mm
Weight	0.9KG
