Hardware Diagnostic Tester Tools Store provide diagnostic tools,hardware tester,tester tools,diagnostic scanner Big Flash Deal 2017 New arrive Original Launch X431 Pro Mini Professional Diagnostic Tool Car Scanner Wifi/Bluetooth Free Update Online. Price at this time US $799.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in KW Cartool Store Trusted Seller Store!
Diagnosis Tool Launch X431 PROs MINI With Tablet PC Support WiFi/Bluetooth Connector Supports Full System2 Years Free Update X-431 PROs MINI Description:

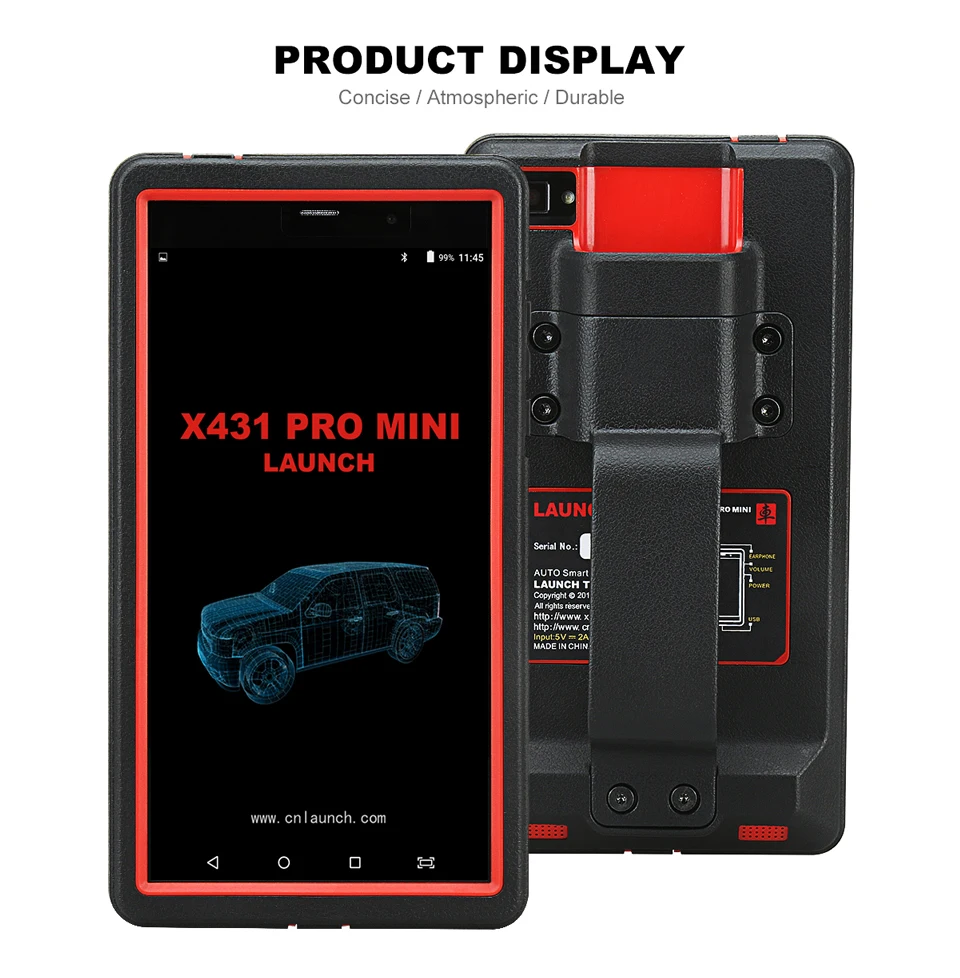

X-431 PROs MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the simple Bluetooth communication between the VCI module and X-431 PROs MINI, it achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream,Actuation Test and Special Functions.
Moreover, it supports Wi-Fi connection, which enables you surf the Internet,update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.
X-431 PROs MINI Features
1. Diagnostic Tool:
A. Diagnose
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions etc.
Specially designed for Android platform with clear and user-friendly interface.
Via Bluetooth, it is simple for the VCI module to communicate with X-431 PROs MINI.

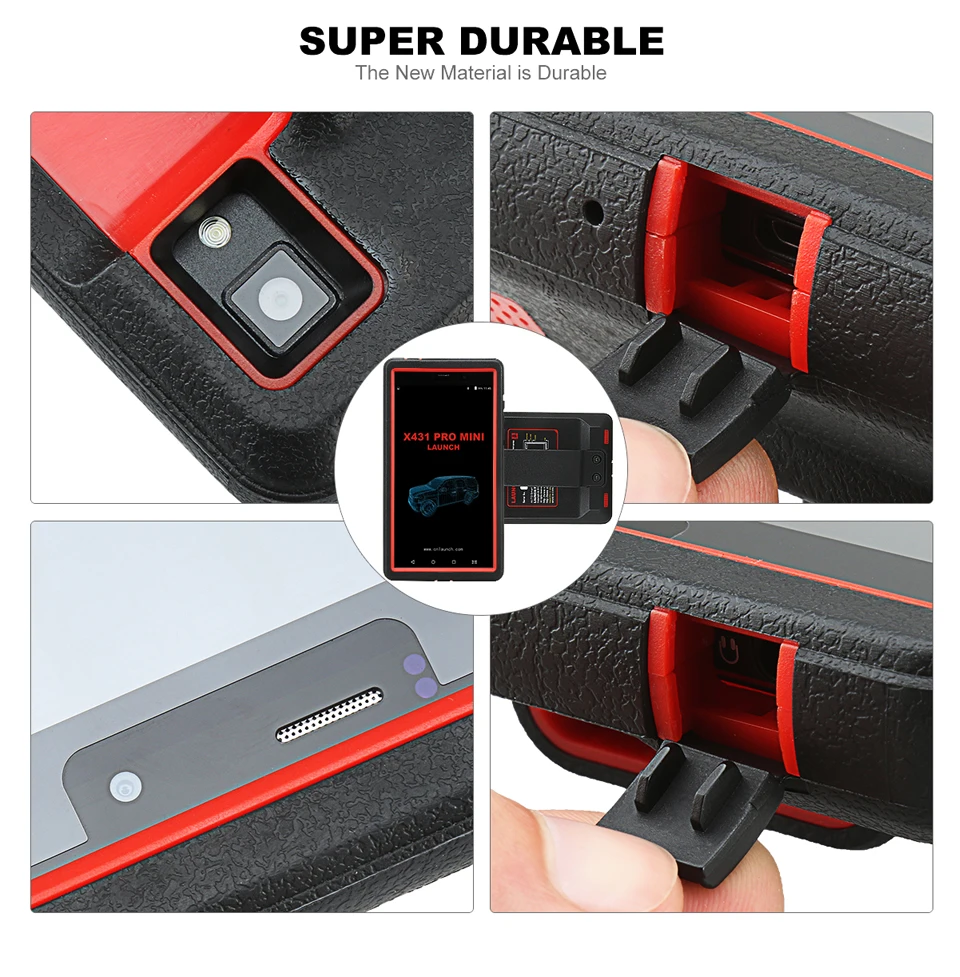

Equipped with an exclusive X-431 PROs MINI protective sleeve to prevent it from being damaged.
B. One-click Update: Lets you update your diagnostic software more efficiently. To obtain better function and update service, advise you update the software regularly.
C. Repair Data: provides abundant automotive handbook, repair case and wiring diagrams for reference and retrieval.
D. Remote Diagnosis: configures X-431 PROs MINI as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
2. Browser: built-in Wi-Fi module makes surfing on the internet freely.
3. Email: allows you to send and receive emails.
4. Settings: to configure your personalized X-431 PROs MINI through it.
5. Applications: other android based applications can be customized to install or uninstall.
6. Special functions:
Launch X-431 PROs MINI can program and code the electronic control system of prevailing vehicle models, also perform special functions, including:
Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
Gear Learning
Immobilizer Matching
Fuel Injector Coding
7. Wide Vehicle Coverage
X-431 PROs MINI supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis
8. Powerful Diagnosis: Accurate
Launch has rich experience of automotive diagnostic technology (for more than 20 years). It also develops original equipments for a vast majority of Chinese brands of automotive factories, so that X-431 PRO MINI performs diagnosis (fault code, data stream, action test and other functions) as the dealership.
9. Powerful Diagnosis: Fast
X-431 PROs MINI can perform full system diagnosis and one button to clear codes at a high speed. It’s easy to operate.
10. Data Stream record and playback
Record and playback the data stream help you analyze the trouble when driving and solve it.
11. VINSCAN
Automatic scan (OBD VIN) and manual input (INPUT VIN) are available.
12. View History
Generally once a vehicle diagnosis is performed, X-431 PROs MINI will record the every details of diagnostic process. The History function provides a quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch.
13. Maintenance Help:
Including: How-to Videos, operation skills and user manual, Q&A, Quick start guide etc.
14. It is 2 Years Free Update.
User registration
Tap “Login” on the upper right corner of the main menu screen:
If you are a new user, tap “New Registration”. See below picture.
Note: To obtain better service, you need to provide real information.
Create App account: fill in the information in each field and then tap “Register”, a screen similar to the following will appear:
Activate the VCI module:
In the above figure, input the Serial Number and Activation Code, which can be found in the password envelope.
Note: To exit and activate it later, tap “Skip”. In this case, you can activate your connector by tapping “Activate Connector” in “Personal Center”.
Tap “Activate”, a dialog box pops up saying congratulations! You have successfully completed your registration; the next step is to download the diagnostic software

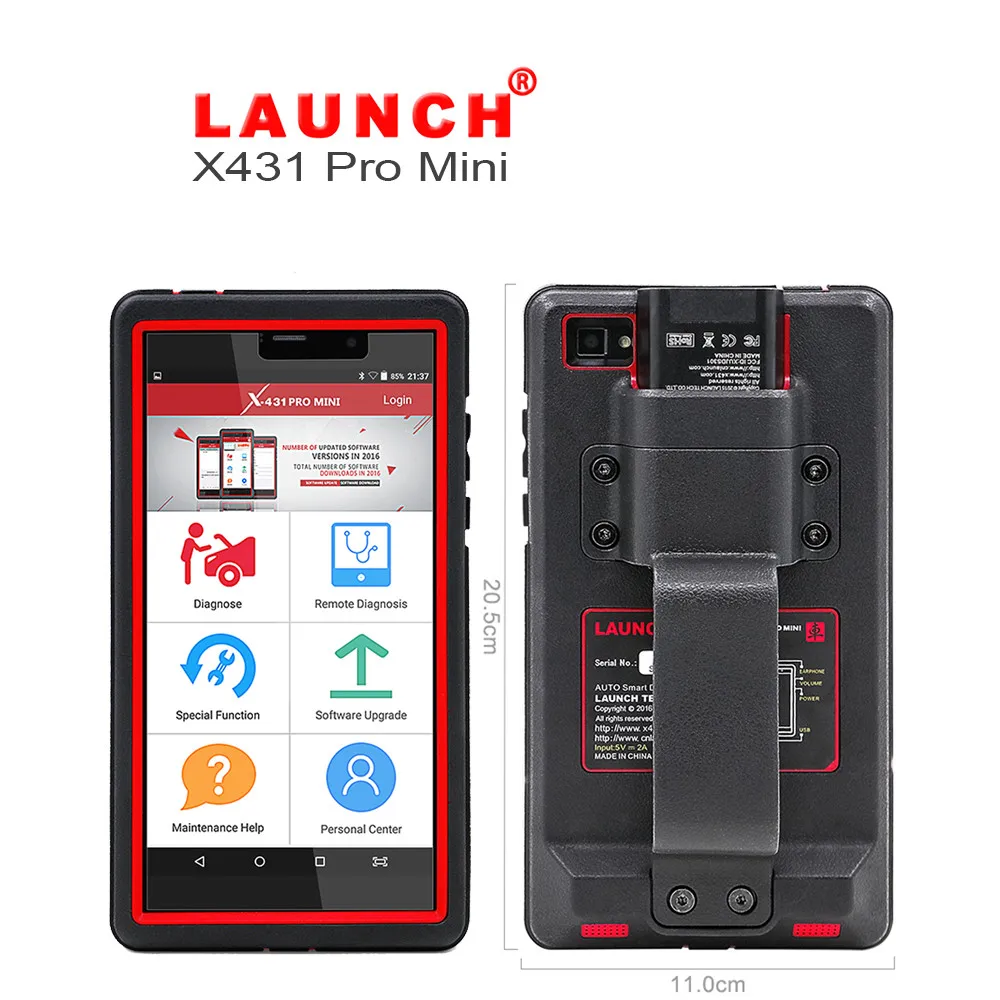

X-431 PROs MINI whole set: X-431 PROs MINI is mainly composed of an X-431 PROs MINI handset, and a DBSCar II VCI module.

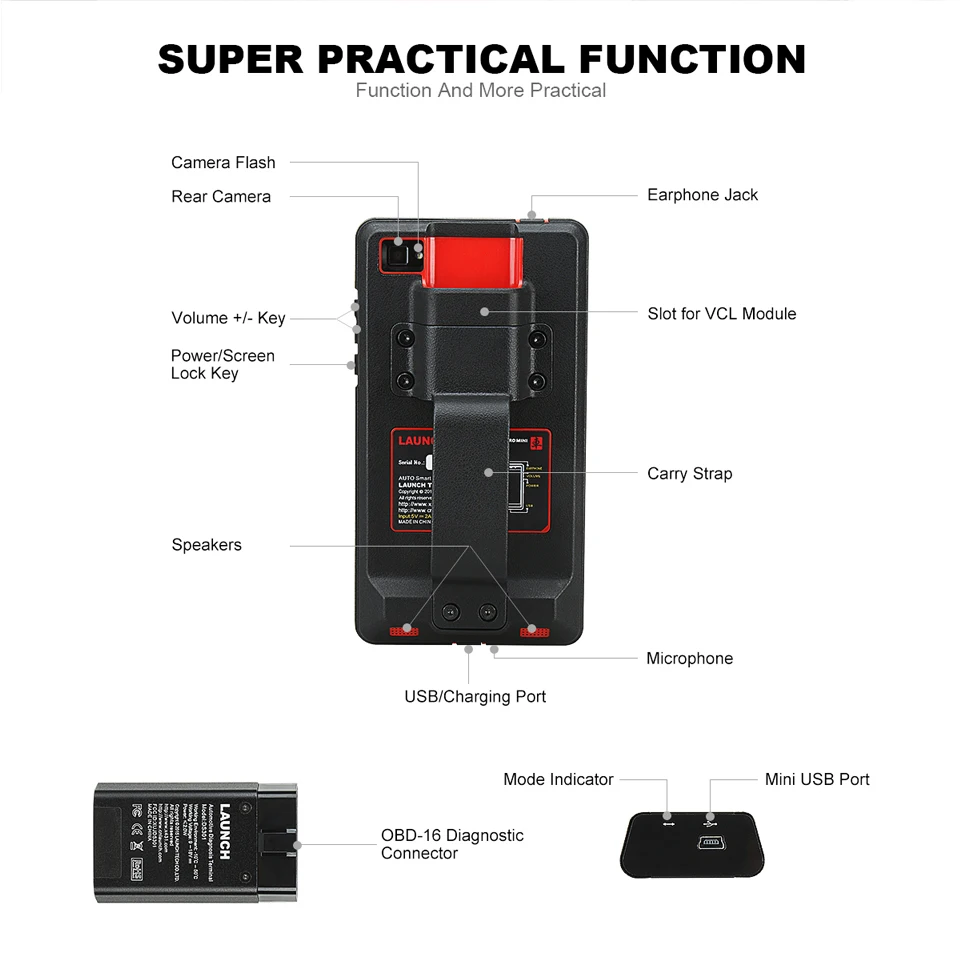

X-431 PROs MINI handset
1. VCI module
2. Reset hole
3. Rear camera
4. Camera flash
5. Slot for VCI module For housing the VCI module.
6. POWER/Screen lock key In Off mode, press it to turn X-431 PROs MINI on; In On mode, turn X-431 PROs MINI off with long press or lock screen with short press.
7. Carry strap
8. Air intake vent
9. USB/Charging port To connect to the power adaptor for charging.
10. Microphone
11. LCD screen
12. VOLUME +/- Key To adjust the volume. To print the screen, hold and press the POWER and VOLUME – key until a snapshot pops up on the screen.
The captured snapshot is saved in the “Screenshots” folder.
13. Speaker
14. Front camera
15. Earphone Jack
X-431 PROs MINI Technical Parameters:
Operating system: Android 5.1
Processor :Quad core 1.3 GHz
Memory: 2GB
Storage:16GB
LCD screen: 6.9 inch with a resolution of 1280 x 720 pixels
Camera :Front-facing 2MP camera + rear-facing 5MP camera
Battery :3.7V/3000mh rechargeable polymer lithium battery
Connectivity : Wi-Fi: WLAN 802.11b/g/n ，Bluetooth: Bluetooth 4.1
Working temperature: 0℃ ~ 45℃
Storage temperature: -10℃ ~ 50℃
VCI module:
Working voltage 9 ~18V
Average working current About 85mA
Standby current About 55mA
Working temperature -10℃ ~ 55℃
Storage temperature -20℃ ~ 70℃
Relative humidity 20% ~ 90%
DBScarIII adapter parameters:
The brand-new DBScarⅢ adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports
CAN diagnosis also USB data transfer.
Size: 69 × 40 × 18 mm
Operating voltage: 9V DC - 18V DC
Test voltage: DC12V
Typical power consumption: ≤2W
Bluetooth distance: 100 m
Connectivity: Bluetooth + wired
Operating temperature: -10℃to 50℃
Red Indicator: Turns red when connected to power supply;
blue Indicator: Turns blue then wireless Bluetooth work;
USB work: Turns green when the connector is connected to the USB cable

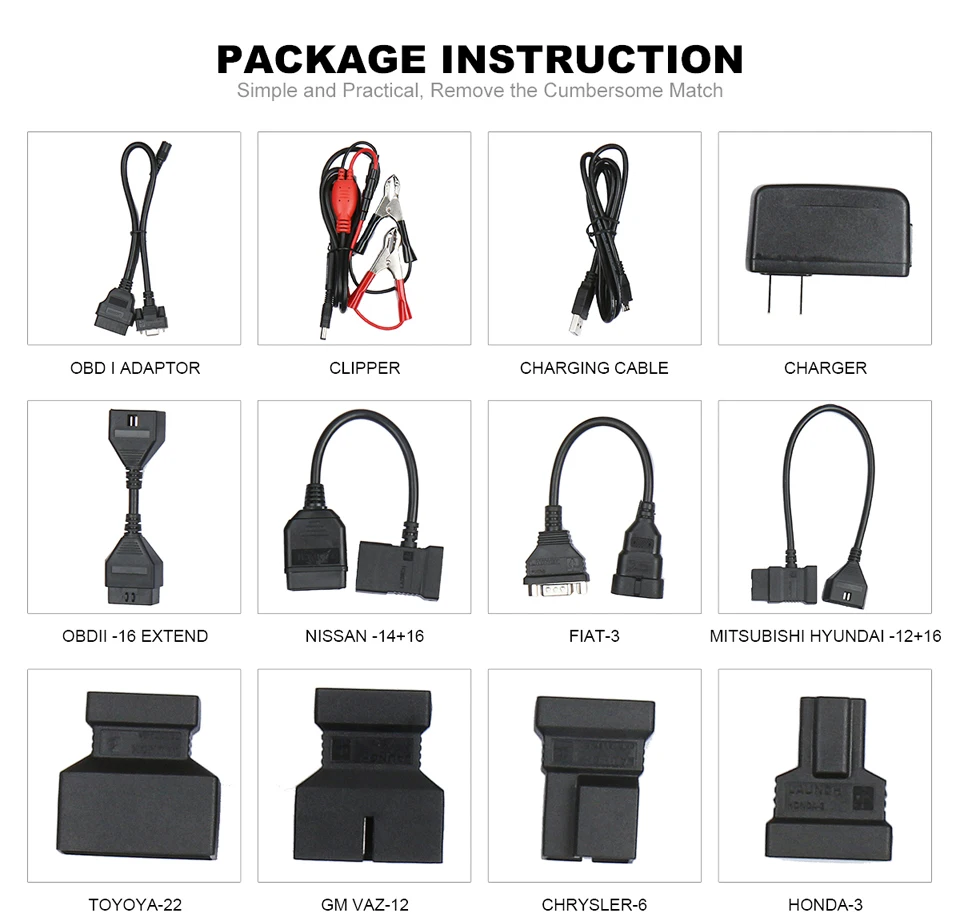

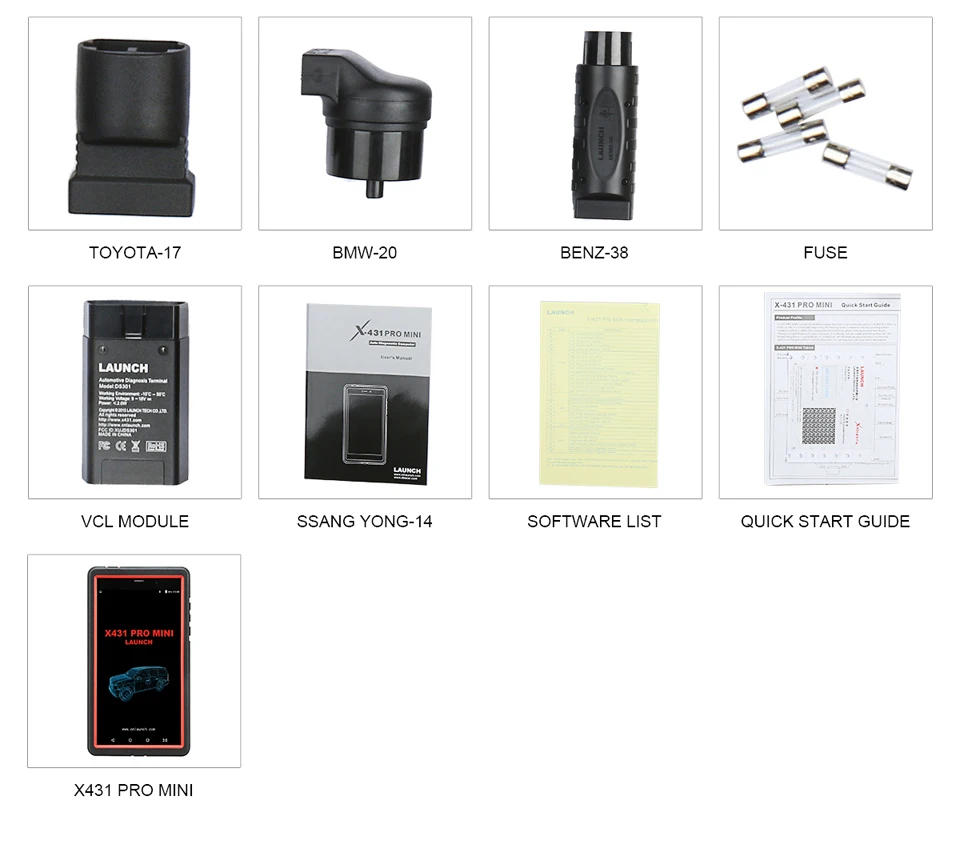

Package Includes:
1pc x X-431 PROs MINI Tablet
1pc x Password envelope
1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the
VCI module)
1pc x Battery clamps cable
1pc x Power adaptors
1pc x Non-16pin connectors (For connecting non-OBD II vehicle)
