Immo BYPASS ecu unlock immobilizer tool for au-di sko-da v-w immobilizer bypass edc15 edc16 car key programmer with hot selling
Introduction

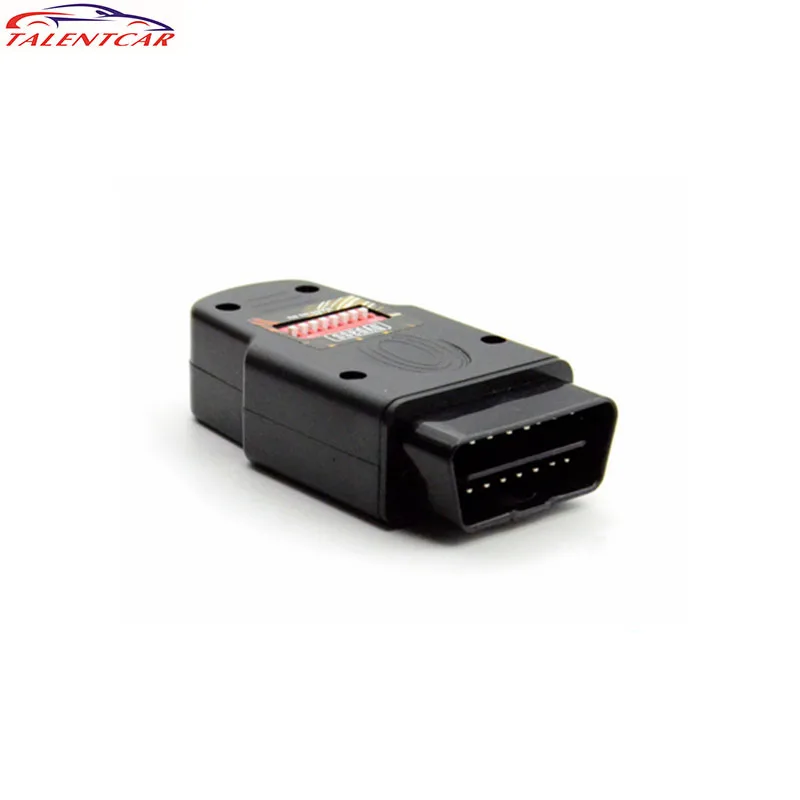

BYPASS for Au- di for S- koda for S- eat for V- W ECU Unlock Immobilizer Tool
USE:
Tdi EDC16- immo off
Tdi EDC16- immo on
K-line + Can
Test on drives:
0281011XXX
K-Line
0281011145 Passat B5 2.0 Tdi mechanical igniton switch
0281011258 Tourareg 2.5 Tdi
0281011364 A3 1.9Tdi 2004
0281011383
0281011385
0281011568 T5 2.5 Tdi 2006/2007
0281011843 Golf5 2.0 Tdi 2004
0281011844 Touran 2.0 Tdi 2004
0281011855 T5 1.9 Tdi 2003
0281011856 T5 1.9 Tdi 2005
0281044882 Caddy 1.9 Tdi 2006
0281011883 Skod a Octavia 1.9 Tdi 2004-2010
0281011900
0281011945
0281011946 Touran 1.9 Tdi 2006
0281011907 Touran 2.0 Tdi
0281012XXX
K-Line
0281012220 GOLF5 1.9 Tdi 2005
0281012390 Caddy 1.9 Tdi 2003-2010
0281012696 Seat Alhambra, Sharan 2.0 Tdi 2005-2010
0281012698 Skod a Super B 2.0 Tdi 2006
0281012762 T5 1.9 Tdi 2006-2010
0281012792
CAN
0281012113 for Au- di A4 2.0 Tdi 2008
0281012545 for AU- DI 1.9 Tdi 2007
0281012546 for Au- di 1.9 Tdi 2006
0281012654 for Au- di 2.0 Tdi 2005
0281013XXX
K-Line
0281013228 Jetta 2.0 Tdi 2007
0281013299 for S- koda Octavia2 2.0 Tdi 2005-2011
0281013302 Touareg 2.5 Tdi 2005-2010
0281013311 Pa- ssat 2.0 Tdi 2005-2009
0281013440 Pa- ssat C 2.0 Tdi 2005-2009
0281013606 Golf5 1.9 Tdi 2006
CAN
0281013177 A6 2.7 Tdi 2007
0281014XXX
K-Line
0281014004
0281014044 Touran 1.9 Tdi 2006-2010
0281014049 T5 2.5 Tdi 2007
0281014064 Golf 1.9 Tdi 2006-2008
0281014128 Tauran 1.9 Tdi 2006-2010
0281014136 for S- koda Octavia II 1.9 Tdi 2006-2010
0281014891 T5 2.5 Tdi 2009
CAN
0281014384 A6 2.7 Tdi 2007
Tdi EDC15-immo off, immo on:
1.4 1.9 2.5 diesel, since 2000 year to 2004 year, some to 2006 year and even to 2008 year(without for AU- DI with coded pump)
Selected the needed program with swtiches:
Tdi EDC16 K-Line immo off(3)
Tdi EDC16 K-Line immo on(1+3)
Tdi EDC16 Can 1.9-2.0 immo off(1+3+5)
Tdi EDC16 Can 1.9-2.0 immo on(2+3+5)
Tdi EDC16 Can 2,7 immo off(1+2+3+5)
Tdi EDC16 Can 2,7 immo on(4+5)
Tdi EDC15 immo off(2)
Tdi EDC15 immo off(2+1)
How to use:
Turn on the ignition switch
Connect the device to the diagnostic plug
Led is bliking fast, if after one minutr it will blink slowly then disconnect device then immo is turn off permanently.If it wont work at first time,then repeat steps from beginning.
Gasoline, diesel without CAN(to about 2001)-emergency start(1)
Connect with the head of the cables plugs of the instrument cluster or immo as pictured
Connect the device to diagnostic plug
Turn on ignition(to 10 seconds)
If led blink slowly then turn on the car.
Gasoline, diesel without can(to about 2001) emergency starts after connecting pins of instrument cluster or immo
Connect with the heads of the cables pins of the instrument cluster
Connect the heads of the cables to 5th pin in green plug of instrument cluster and 25th in the blue plug(in for Au-di pin 28)
With immo box:
plug with 6pins, heads of the cables to pin 2 and 3
Plug with 8pins, heads of the cables to pin 7 and 8
Plug with 12pins, heads of the cables to pin 9 and 10
Plug with 10pins(older cars without CAN) heads of the cables to pin 7 and 8
Plug with 12pins, heads of the cables to pin 6 and 8
Immobilizers Simulator
Connecting the emulator
Red-power
Blue-GND
Green-Code
White-CAN L
Black-CAN H
Two Leds incidcating:
Whilte LED-Power
Blue Led- information about transmission
- all switches turn off- diagnostic mode 2 sec do not light/ 1 sec will blink
-Adjusting to the driver-blinking 1 sec
-After adjusting 2 seconds is light on and then will stop for 1 sec
for C- itroen, for P- egueot, for R- enault ECU with processor TMS374-immo
Power supply of emulator +5V!!!
Connection: look at instruction to emulator immo NO.6
for Dae- woo ECU with processor HC11F1-immo
Connection: look at instruction to emulator immo No.7
for F- iat, for C- itroen, for P- eugeot without CAN-immo
Connection: look at instruction to emulator immo NO.8
for K- ia Sportage 2.0 Tdi-immo
Connection: look at instruction to emulator immo NO.9
M- atiz, T- acuma and L- anos 1 4 hybrid-immo
Connection: look at instruction to emulator immo NO.10
For M- ercedes CR without CAN-immo
Connection: Look at instruction to emulator immo NO.11
For M- ercedes CR1 with CAN older-immo
Connection: look at instruction to emulator immo NO.12
For M- ercedes CR2 with can newer-immo
Connection: look at instruction to emulator immo NO.13
for Ni- ssan from 2000-2002 year-immo
Connection: look at insutrction to emulator immo NO.14
For O- PEL immo on HD05-immo
Connection: look at instruction to emulator immo NO.15
For R- enault without CAN-immo
Connection: look at instruction to emulator immno NO.16
for S- uzuki with memory OKI-immo
Connection: look at instruction to emulator immno NO.17-18
for S- uzuki with memory X24C01-immo
Connection: look at instruction to emulator immo NO.17-18
for C- itroen for P- eugeot CAN-immo
Connection: look at instruction to emulator immo NO.19
For M- ercedes ESL-electronic emulator of the sterring column lock-immo
Connection: look at instruction to emulator immo NO.20
Simulator of seat occumpant detector
The emulator connect to a plug under the passenger seat, instead of original seat occupant detector
There are 3 cables:
+12V ACC
Ground
Digital Signal
Before connecting emulator use multimeter to check signals on pins in a plug!
For B- MW european to 2007 with plastic key-seat occupant detector
-E65 E60 E63 E90 X5
without installed child restraint
For M- ercedes-seat occupant detector
-E-class W211(2002-2004) with com. a- irbag Temic
-S-class W220(2003-2005)
Without installed child restraint
For M- ercedes-seat occupant detector
-A-Class W168(1997-2001)
-C-Class W202(1999-2001)
-Vito W638 to 2003
-ML with comp. a- irbag TRW 1999
-E W210 to 1999
-E-Class before lifting with lamp A- irbag off
Without installed child restraint
