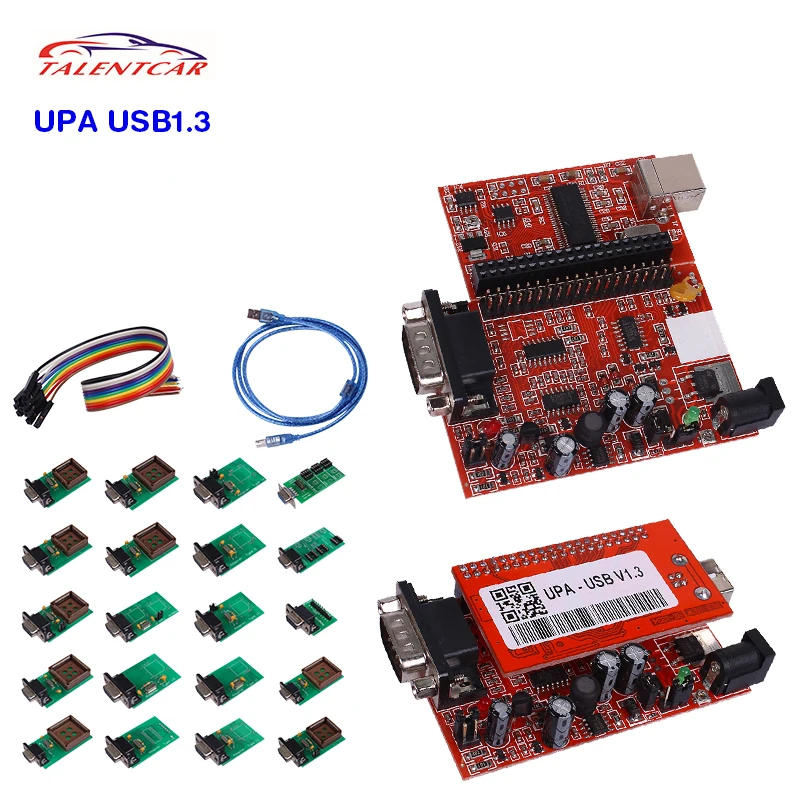

UPA USB Programmer v1.3 with Full Adapters
Item: 2015 UPA USB Serial Master Programmer v1.3 with Full Adapters
Product Description Language: English.
Hardware Version: V2014
Software Vesion: V1.3
Notice: It Supports Nec Function, but Has No NEC Adapter in the Package.
UPA USB Programmer Description:
New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. Its equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.
Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.
Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.
The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)
UPA-USB Device Programmer V1.3 Update Info:
EEproms
Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.
For M- otorola MCUs
Pick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main boards 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and lets you make your job faster, precise and easier)
Once your workshop is equipped with our Adapter Set you will have a all new UPA Experience.
STMicroelectronics ST62*:
ST6240, ST6245, ST6249
NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
for M- otorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*, MC68HC05X16, MC68HC05X32
for M- otorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
for M- otorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
for M- otorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
for M- otorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256
Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313
Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)
EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01
EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045
EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102
EEPROM Only
NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974
TMS...TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912
TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006
Package List:
1pcXMain unit
1pcXUSB cable
1pcXCD
1pcX5pin cable
1pcXAdapter Type1 Per eprom I2C,SPI, Microware e M35080
1pcXAdapter Type2 for M- otorola MC68HC11P2+MC68HC11PH8-PLCC84
1pcXAdapter Type3 for M- otorola MC68HC08AS-PLCC52
1pcXAdapter Type4 for M- otorola MC68HC11KA2/4+MC68HC11KS-PLCC68
1pcXAdapter Type5 for M- otorola MC68HC(9)08-QFP64
1pcXAdapter Type6 for M- otorola MC68HC11F1-PLCC68
1pcXAdapter Type7 for M- otorola MC68HC05H12-PLCC52
1pcXAdapter Type8 for M- otorola MC68HC11K-PLCC84
1pcXAdapter Type9 for M- otorola MC68HC11A8/E1/E9/E20+MC68HC11EA9-PLCC52
1pcXAdapter Type10 for M- otorola MC68HC11KA2/4+MC68HC11PA8-QFP64
1pcXAdapter Type11 for M- otorola MC68HC11K-QFP80
1pcXAdapter Type12 Extended address
1pcXAdapter Type13 for M- otorola MC68HC11A8/E1/E9/E20-QFP64
1pcXAdapter Type14 for M- otorola MC68HC05B4/B6/B8/B16/B32+MC68HC705B16/B32-PLCC52
1pcXAdapter Type15 for M- otorola MC68HC(7)05E6-SOIC28
1pcXAdapter Type16 for M- otorola MC68HC05B4/B6/B8/B16/B32+MC68HC(7)05X16/X32-QFP64
1pcXAdapter Type17 for M- otorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
1pcXAdapter Type18 for M- otorola MC68HC11F1-QFP80
1pcXAdapter Type19 for M- otorola MC68HC11L6-PLCC68
Product Pictures:
